CODO Day44_Spring(PhotoBoard)

by 코도꼬마 2023. 4. 4.

에러 페이지 띄우기



설정

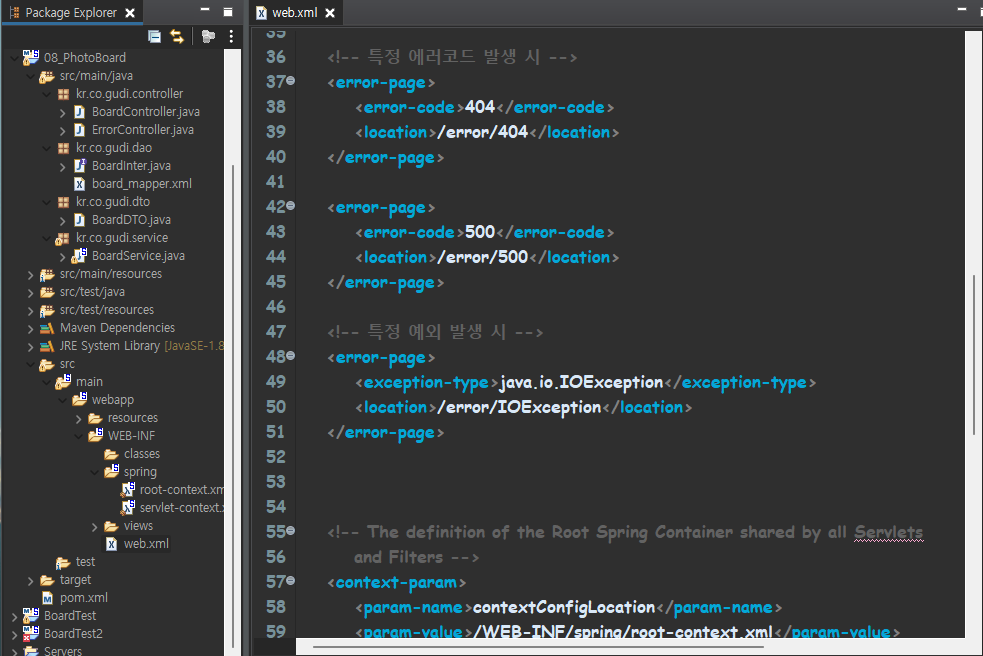

  • web.xml

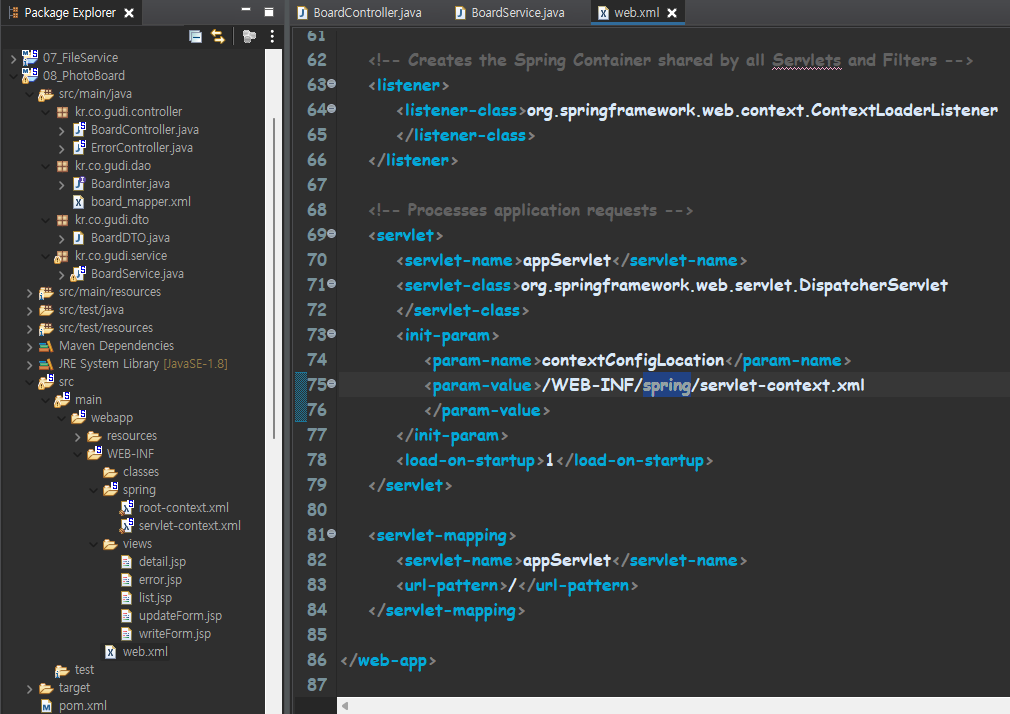

# servlet-context.xml 파일 위치 변경해줌

    >> web.xml에서 경로 변경해주어야함

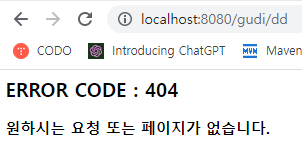

  • error.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>

<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<script src="https://code.jquery.com/jquery-3.6.3.min.js"></script>
<style>

</style>
</head>
<body>
	<h2>ERROR CODE : ${code}</h2>
	<h3>${msg}</h3>
</body>
<script></script>
</html>



  • Controller
package kr.co.gudi.controller;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;

@Controller
public class ErrorController {

	Logger logger = LoggerFactory.getLogger(getClass());

	@RequestMapping(value="/error/404")
	public String notFound(Model model) {

		model.addAttribute("code","404");
		model.addAttribute("msg","원하시는 요청 또는 페이지가 없습니다.");

		return "error";
	}

	@RequestMapping(value="/error/500")
	public String serverError(Model model) {

		model.addAttribute("code","500");
		model.addAttribute("msg","서버처리 중 문제가 발생했습니다.");

		return "error";
	}

	@RequestMapping(value="/error/IOException")
	public String ioException(Model model) {

		model.addAttribute("code","500");
		model.addAttribute("msg","데이터 입출력 중 문제 발생!");

		return "error";
	}

}



CSS 설정

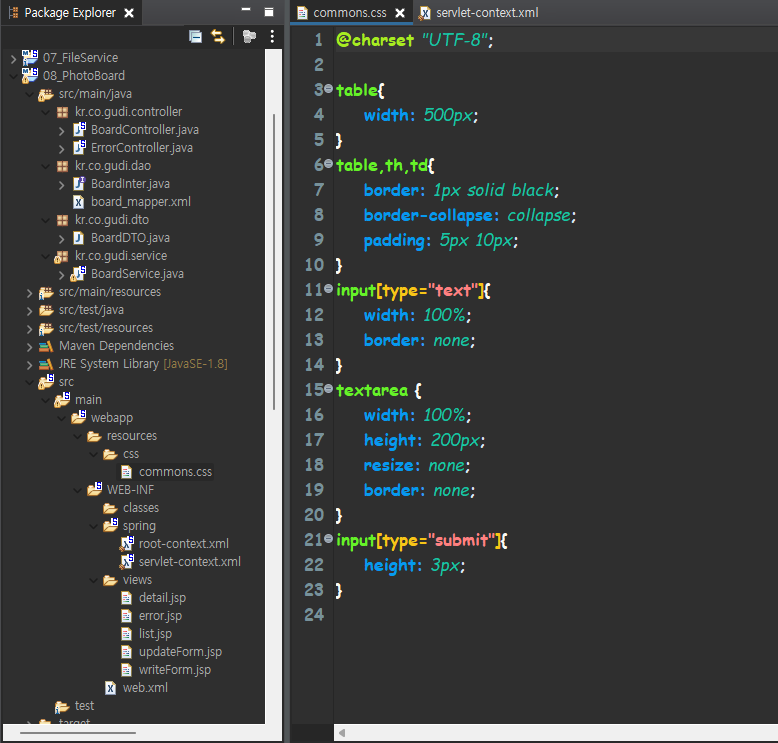

  • src > main > webapp > resources 파일에 css 파일 생성
    • connons라는 css 파일 생성해서
      • style 태그에 작성하듯 동일하게 작성



  • 적용시킬 jsp에 아래 태그 삽입
<link rel="stylesheet" href="resources/css/commons.css" type="text/css">

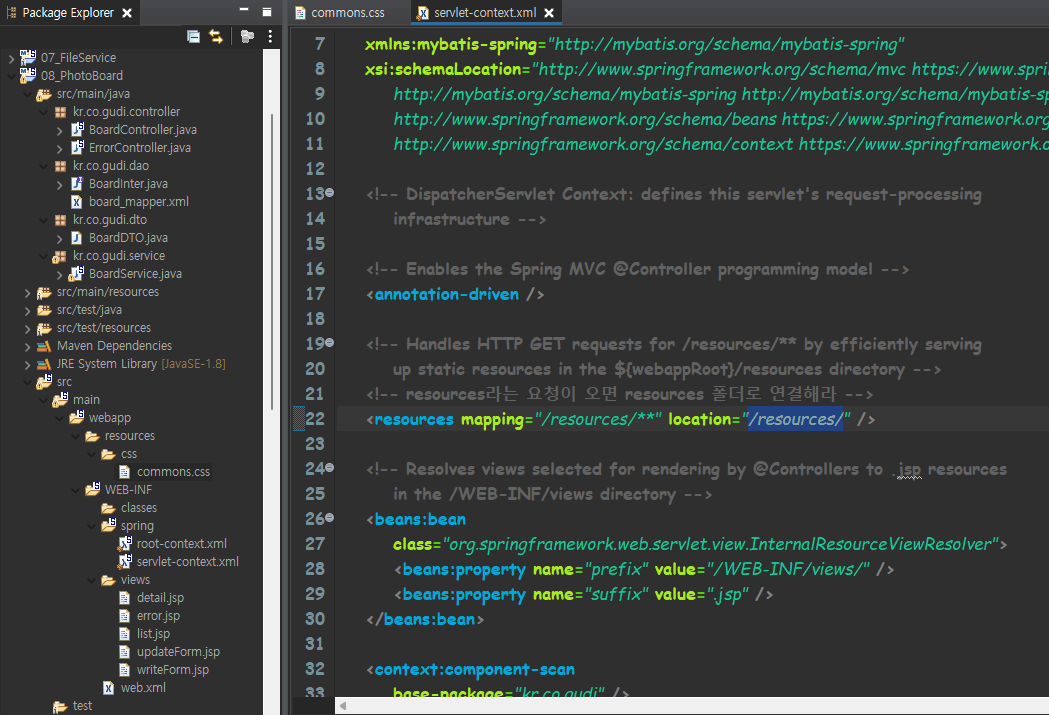

# 다음과 같이 resources 경로 설정으로 인해 모든 jsp에 적용됨







게시판 사진 업로드



# DB 연결 설정 해주어야함

# 기존 Board에서 JSP는 변경된 부분만 올림

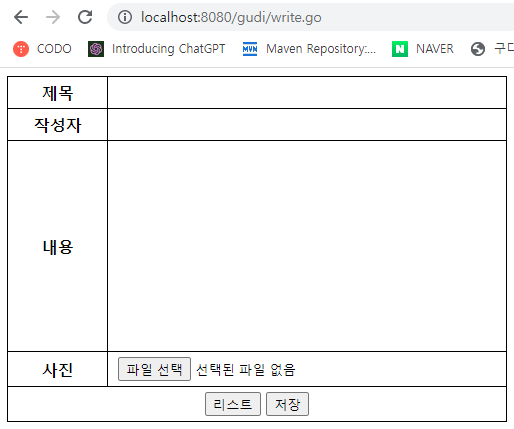

  • writeForm.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>

<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<script src="https://code.jquery.com/jquery-3.6.3.min.js"></script>
<link rel="stylesheet" href="resources/css/commons.css" type="text/css">
<style>

</style>
</head>
<body>
	<form action="write.do" method="post" enctype="multipart/form-data">
		<table>
			<tr>
				<th>제목</th>
				<td><input type="text" name="subject"/></td>
			</tr>
			<tr>
				<th>작성자</th>
				<td><input type="text" name="user_name"/></td>
			</tr>
			<tr>
				<th>내용</th>
				<td><textarea name="content"></textarea></td>
			</tr>
			<tr>
				<th>사진</th>
				<td><input type="file" name="photo"/></td>
			</tr>
			<tr>
				<th colspan="2">
					<input type="button" onclick="location.href='./list.do'" value="리스트"/>
					<button>저장</button>
				</th>
			</tr>
		</table>
	</form>
</body>
<script></script>
</html>

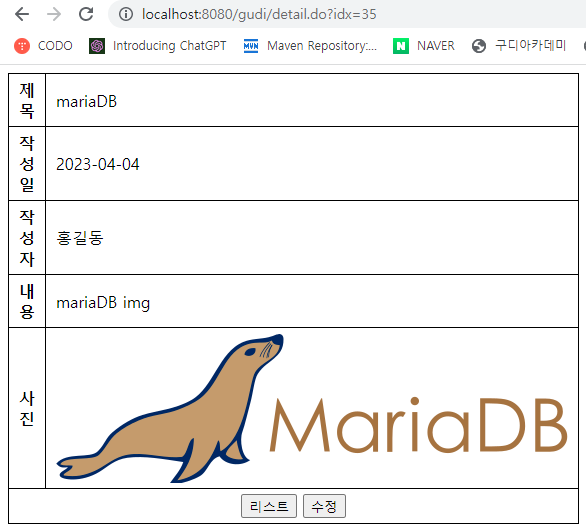

  • detail.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>

<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<script src="https://code.jquery.com/jquery-3.6.3.min.js"></script>
<link rel="stylesheet" href="resources/css/commons.css" type="text/css">
<style>

</style>
</head>
<body>

		<table>
			<tr>
				<th>제목</th>
				<td>${dto.subject}</td>
			</tr>
			<tr>
				<th>작성일</th>
				<td>${dto.reg_date}</td>
			</tr>
			<tr>
				<th>작성자</th>
				<td>${dto.user_name}</td>
			</tr>
			<tr>
				<th>내용</th>
				<td>${dto.content}</td>
			</tr>
			<c:if test="${dto.newFileName ne null }">
				<tr>
					<th>사진</th>
					<td><img src="/photo/${dto.newFileName}"></td>
				</tr>
			</c:if>
			<tr>
				<th colspan="2">
					<input type="button" onclick="location.href='./list.do'" value="리스트"/>
					<input type="button" onclick="location.href='./update.go?idx=${dto.idx}'" value="수정"/>
				</th>
			</tr>
		</table>

</body>
<script></script>
</html>

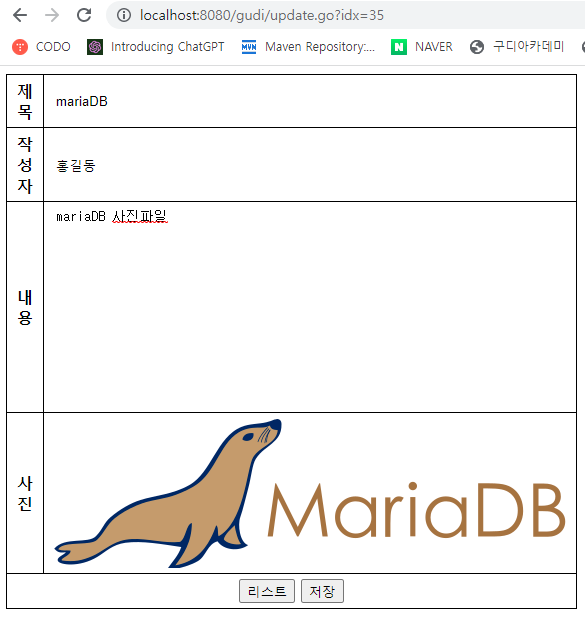

  • updateForm.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>

<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<script src="https://code.jquery.com/jquery-3.6.3.min.js"></script>
<link rel="stylesheet" href="resources/css/commons.css" type="text/css">
<style>

</style>
</head>
<body>
	<form action="update.do" method="post" enctype="multipart/form-data">
	<input type="hidden" name="idx" value="${dto.idx}"/>
		<table>
			<tr>
				<th>제목</th>
				<td><input type="text" name="subject"  value="${dto.subject}"/></td>
			</tr>
			<tr>
				<th>작성자</th>
				<td><input type="text" name="user_name" value="${dto.user_name}"/></td>
			</tr>
			<tr>
				<th>내용</th>
				<td><textarea name="content">${dto.content}</textarea></td>
			</tr>
			<tr>
				<th>사진</th>
				<td>
					<c:if test="${dto.newFileName eq null}">
						<input type="file" name="photo"/>
					</c:if>
					<c:if test="${dto.newFileName ne null}">
						<img src="/photo/${dto.newFileName}">
					</c:if>
				</td>
			</tr>
			<tr>
				<th colspan="2">
					<input type="button" onclick="location.href='./list.do'" value="리스트"/>
					<button>저장</button>
				</th>
			</tr>
		</table>
	</form>
</body>
<script></script>
</html>





  • Controller
package kr.co.gudi.controller;

import java.util.ArrayList;
import java.util.HashMap;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.multipart.MultipartFile;

import kr.co.gudi.dto.BoardDTO;
import kr.co.gudi.service.BoardService;

@Controller
public class BoardController {

	@Autowired BoardService service;

	Logger logger = LoggerFactory.getLogger(getClass());

	@RequestMapping(value={"/","/list.do"})
	public String list(Model model) {
		logger.info("list call");
		ArrayList<BoardDTO> list = service.list();
		logger.info("list size : "+list.size());
		model.addAttribute("list", list);
		return "list";
	}

	@RequestMapping(value="/write.go")
	public String writeForm() {
		logger.info("write page 이동");
		return "writeForm";
	}

	@RequestMapping(value="/write.do", method = RequestMethod.POST)
	public String write(MultipartFile photo, @RequestParam HashMap<String, String> params) {
		//logger.info("params : " + params);
		return service.write(photo,params);
	}

	@RequestMapping(value="/detail.do")
	public String detail(Model model, @RequestParam String idx) {
		logger.info("detail : "+idx);

		String page = "redirect:/list.do";

		BoardDTO dto = service.detail(idx,"detail");
		if(dto != null) {
			page = "detail";
			model.addAttribute("dto", dto);
		}
		return page;
	}

	@RequestMapping(value="/delete.do")
	public String delete(@RequestParam String idx) {
		service.delete(idx);
		return "redirect:/list.do";
	}

	@RequestMapping(value="/update.go")
	public String update(Model model, @RequestParam String idx) {
		logger.info("update : "+idx);

		String page = "redirect:/list.do";

		BoardDTO dto = service.detail(idx,"update");
		logger.info("dto : "+dto);
		if(dto != null) {
			page = "updateForm";
			model.addAttribute("dto", dto);
		}
		return page;
	}

	@RequestMapping(value="/update.do", method = RequestMethod.POST)
	public String update(MultipartFile photo, @RequestParam HashMap<String, String> params) {
		logger.info("params : " + params);
		return service.update(photo,params);
	}
}



  • DTO
package kr.co.gudi.dto;

import java.sql.Date;

public class BoardDTO {

	private int idx;
	private String subject;
	private String content;
	private String user_name;
	private int bHit;
	private Date reg_date;
	private int photoIdx;
	private String newFileName;

	public int getIdx() {
		return idx;
	}
	public void setIdx(int idx) {
		this.idx = idx;
	}
	public String getSubject() {
		return subject;
	}
	public void setSubject(String subject) {
		this.subject = subject;
	}
	public String getContent() {
		return content;
	}
	public void setContent(String content) {
		this.content = content;
	}
	public String getUser_name() {
		return user_name;
	}
	public void setUser_name(String user_name) {
		this.user_name = user_name;
	}
	public int getbHit() {
		return bHit;
	}
	public void setbHit(int bHit) {
		this.bHit = bHit;
	}
	public Date getReg_date() {
		return reg_date;
	}
	public void setReg_date(Date reg_date) {
		this.reg_date = reg_date;
	}
	public int getPhotoIdx() {
		return photoIdx;
	}
	public void setPhotoIdx(int photoIdx) {
		this.photoIdx = photoIdx;
	}
	public String getNewFileName() {
		return newFileName;
	}
	public void setNewFileName(String newFileName) {
		this.newFileName = newFileName;
	}

}



  • Service
package kr.co.gudi.service;

import java.io.File;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.util.ArrayList;
import java.util.HashMap;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.web.multipart.MultipartFile;

import kr.co.gudi.dao.BoardInter;
import kr.co.gudi.dto.BoardDTO;

@Service
public class BoardService {

	@Autowired BoardInter dao;

	Logger logger = LoggerFactory.getLogger(getClass());

	public ArrayList<BoardDTO> list() {
		logger.info("list 요청");
		return dao.list();
	}

	public String write(MultipartFile photo, HashMap<String, String> params) {

		String page = "redirect:/list.do";

		//1. 게시글만 작성한 경우
		//방금 insert 한 값의 key를 반환 받는 방법
		//조건 1. 파라메터를 DTO로 보내야함(Spring에서만)
		BoardDTO dto = new BoardDTO();
		dto.setSubject(params.get("subject"));
		dto.setUser_name(params.get("user_name"));
		dto.setContent(params.get("content"));

		int row = dao.write(dto);
		//logger.info("update row : "+row);

		//조건 3 : 받아온 키는 파라메터 DTO에서 뺀다
		int idx = dto.getIdx();
		//logger.info("방금 insert 한 idx : "+idx);

		page = "redirect:/detail.do?idx="+idx;

		//2. 파일도 업로드 한 경우
		if(!photo.getOriginalFilename().equals("")) {
			//logger.info("파일 업로드 작업");
			fileSave(idx, photo);
		}
		return page;
	}

	private void fileSave(int idx, MultipartFile file) {
		//2-1. 파일을 C:/img/upload/ 에 저장

		//2-1-1. 원본이름 추출
		String oriFileName = file.getOriginalFilename();

		//2-1-2. 확장자 추출
		String ext = oriFileName.substring(oriFileName.lastIndexOf("."));

		//2-1-3. 새 이름 생성 + 확장자
		String newFileName = System.currentTimeMillis()+ext;
		//logger.info(oriFileName+" >> "+newFileName);

		//2-1-4. 바이트 추출
		try {
			byte[] bytes = file.getBytes();

			//2-1-5. 추출한 바이트 저장
			Path path = Paths.get("C:/img/upload/"+newFileName);
			Files.write(path, bytes);
			//logger.info(newFileName+" save OK");

		} catch (IOException e) {
			e.printStackTrace();
		}

		//2-2. 저장정보를 DB에 저장
		dao.fileWrite(idx,oriFileName,newFileName);

		//2-2-1. 가져온 idx, oriFileName, newFileName을 insert


	}

	public BoardDTO detail(String idx, String flag) {
		if(flag.equals("detail")) {
			dao.upHit(idx); //조회수 증가
		}
		BoardDTO dto = dao.detail(idx);
		logger.info("dto : "+dto);
		return dto;
	}

	public void delete(String idx) {
		//1. photo에 해당 idx 값이 있는지
		String newFileName = dao.findFile(idx);
		logger.info("file name : "+newFileName);

		//2. 없을 경우?
		int row = dao.delete(idx);
		logger.info("delete deta : "+row);

		//3. 있을 경우?
		//3-1. bbs와 photo가 확실히 삭제되었는지?
		if(newFileName != null && row > 0) {
			//3-2. 해당 파일이 존재하는지?
			File file = new File("C:/img/upload/"+newFileName);
			if(file.exists()) {
				//3-3. 삭제
				file.delete();
			}
		}
	}

	public String update(MultipartFile photo, HashMap<String, String> params) {

		String page = "redirect:/list.do";
		int idx;

		//1. update 실행
		int row = dao.update(params);

		//2. photo에 파일명이 존재 한다면?
		idx = Integer.parseInt(params.get("idx"));
		if(photo != null && !photo.getOriginalFilename().equals("")) {
			fileSave(idx,photo);
		}

		page = "redirect:/detail.do?idx="+idx;

		return page;
	}
}



  • Inter(=DAO)
package kr.co.gudi.dao;

import java.util.ArrayList;
import java.util.HashMap;

import kr.co.gudi.dto.BoardDTO;

public interface BoardInter {

	ArrayList<BoardDTO> list();

	int write(BoardDTO dto);

	void fileWrite(int idx, String oriFileName, String newFileName);

	void upHit(String idx);

	BoardDTO detail(String idx);

	int delete(String idx);

	String findFile(String idx);

	int update(HashMap<String, String> params);

}



  • board_mapper
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC	"-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!-- xml 을 java 에서 쓰기 위해 연결되는 interface 가 필요 하다. -->
<mapper namespace="kr.co.gudi.dao.BoardInter">

	<select id="list" resultType="kr.co.gudi.dto.BoardDTO">
		SELECT
			idx,subject,user_name,bHit,reg_date
		FROM bbs ORDER BY idx
	</select>

	<!-- 방금 insert 한 값의 key를 반환 받는 방법 -->
	<!-- 조건 2 : generatedKey 옵션을 사용해야함 -->
	<!-- useGeneratedKeys="true"
		keyColumn="idx" : 가져올 키 컬럼의 이름
		keyProperty="idx" : DTO에 담을 필드 이름
	-->
	<insert
		useGeneratedKeys="true"
		keyColumn="idx"
		keyProperty="idx"
		id="write" parameterType="kr.co.gudi.dto.BoardDTO">
		INSERT INTO bbs(subject,user_name,content)
			VALUES(#{subject},#{user_name},#{content})
	</insert>

	<insert id="fileWrite">
		INSERT INTO photo(idx,oriFileName,newFileName)
			VALUES(#{param1},#{param2},#{param3})
	</insert>

	<update id="upHit">
		UPDATE bbs SET bHit = bHit+1 WHERE idx = #{param1}
	</update>

	<select id="detail" resultType="kr.co.gudi.dto.BoardDTO">
		SELECT b.subject, b.user_name, b.content, b.reg_date, b.idx,
			p.photoIdx, p.newFileName
		FROM bbs b LEFT JOIN photo p ON b.idx = p.idx WHERE b.idx = #{param1}
	</select>

	<delete id="delete">
		DELETE FROM bbs WHERE idx = #{param1}
	</delete>

	<select id="findFile" resultType="String">
		SELECT newFileName FROM photo WHERE idx = #{param1}
	</select>

	<update id="update" parameterType="hashmap">
		UPDATE bbs SET subject = #{subject}, user_name= #{user_name}, content = #{content}
			WHERE idx = #{idx}
	</update>

</mapper>







저작자표시 비영리 변경금지

'코딩도전기 > Spring' 카테고리의 다른 글

CODO Day46_Spring(Paging)  (0) 2023.04.07
CODO Day45_Spring(AJAX)  (0) 2023.04.05
CODO Day43_Spring(FileService)  (0) 2023.04.03
CODO Day42_Spring(BoardApp)  (0) 2023.03.31
CODO Day41_Spring(MemberApp)  (0) 2023.03.30

관련글

티스토리툴바
